Phase 5: Perception-guided picking

In this phase you replace the fixed approach and grasp poses with live data from the camera: a vision service detects a block, and the motion service takes the block’s camera-frame position and plans a collision-free pick.

Configure the vision pipeline

Perception here is a two-stage pipeline. A detector finds blocks in the camera’s 2D color image and returns a labeled bounding box for each. A segmenter then takes those 2D boxes, pulls the matching depth points from the camera, and fuses each into a 3D object point cloud with a real-world position. A 2D detection alone cannot tell you how far away a block is or where it sits in space; the segmenter is what turns “a block-shaped region of pixels” into “a block at this point in three dimensions.” You configure the two as separate vision services, wired so the segmenter depends on the detector.

Add the shape detector

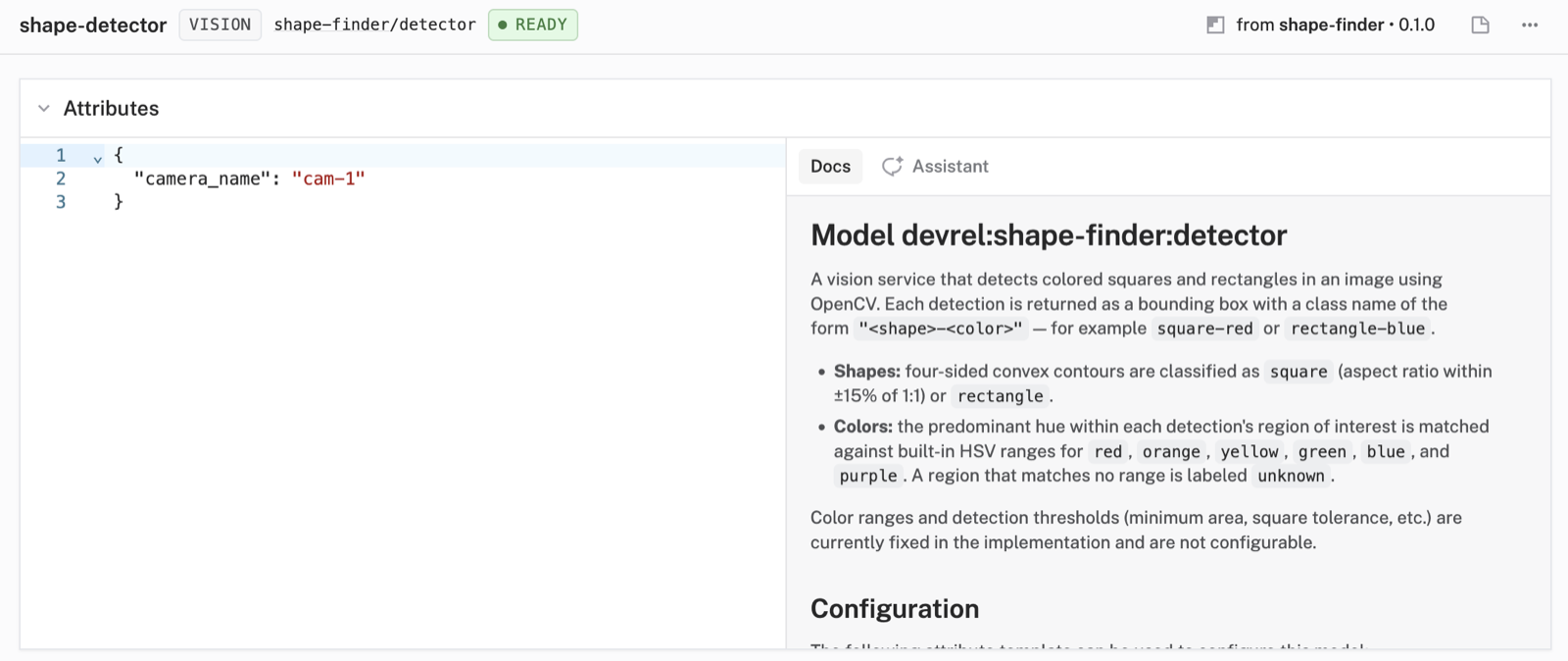

shape-finder/detector is a vision model that finds known block shapes in a color image and returns a labeled bounding box for each. On the CONFIGURE tab, click the + icon and select Blocks, search for shape-finder, select the shape-finder/detector model, and name it shape-detector. Set its one attribute:

{
  "camera_name": "cam-1"
}

camera_name tells the detector which camera to read color frames from, and it is also a dependency: shape-detector cannot run until cam-1 is online, the same dependency pattern you have already seen with gripper-1 and arm-1.

Add the segmenter

vision/detections-to-segments is a builtin vision model that reads a detector’s output together with the camera’s depth data and produces one point cloud per detection, each with an estimated size and 3D position. Add it the same way: click the + icon and select Blocks, search for detections-to-segments, select the vision/detections-to-segments model, and name it vision-segment. Set its attributes:

{
  "detector_name": "shape-detector",
  "camera_name": "cam-1",
  "mean_k": 5,
  "sigma": 1.25
}

detector_name and camera_name are dependencies, so vision-segment waits for both shape-detector and cam-1 before it starts. mean_k and sigma tune a statistical outlier filter that cleans up the depth points before fusion: mean_k is how many neighbors each point is compared against, and sigma is how far from the local average a point may sit before it is dropped as noise. The values here are sensible defaults; see detections-to-segments for the full attribute reference.

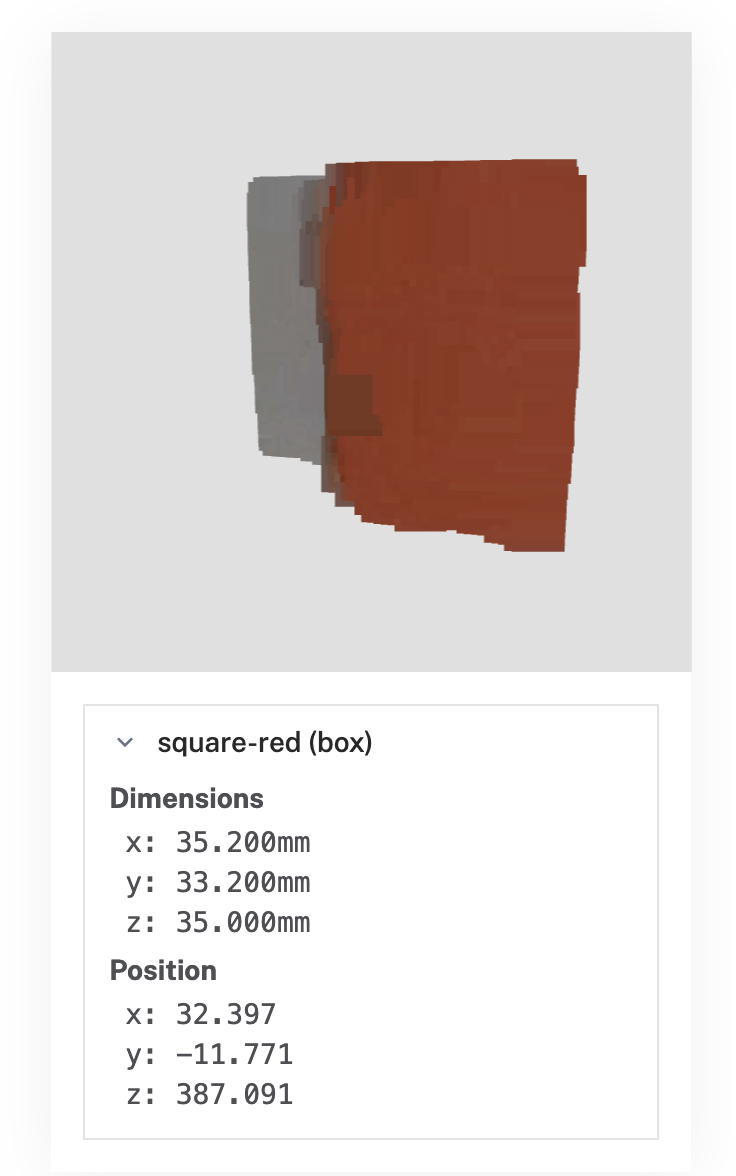

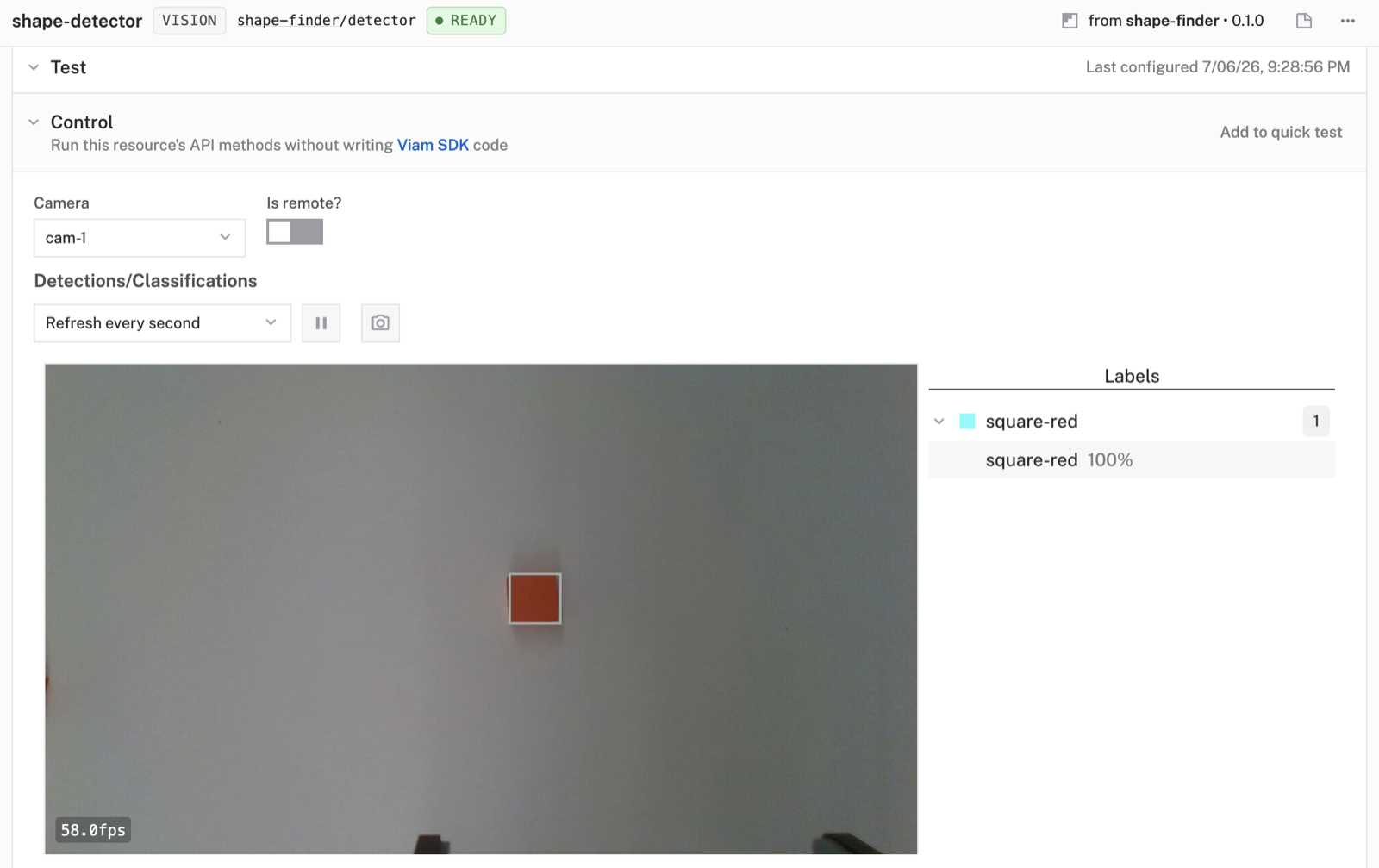

Save the config and open the CONTROL tab. Find the vision-segment test card. You should see the detections coming from the shape-detector service and one or more segmented objects under the Object point clouds section after toggling Show object point clouds. Each segmented object is displayed as a small point cloud with a label matching the paired bounding-box detection, with estimated dimensions and 3D position from the perspective of the camera.

With the service live, go back to starter-script.py and uncomment the vision handle, the line marked # Used in Phase 5 that you left commented in Phase 4:

vision = VisionClient.from_robot(machine, "vision-segment")

Let the motion service place the gripper

Every pose that vision-segment returns is expressed in the cam-1 frame. That is the only frame the vision service knows about: it looked at pixels and depth values coming out of one camera, so the coordinates it hands back describe where a block sits relative to that camera’s own origin and orientation.

The pick uses the motion service to move the arm to that block. You never configured it: the motion service is one of a handful of services the RDK builds into viam-server itself, so it is present on every machine under the reserved name builtin, which is why builtin appeared in machine.resource_names even though there is no motion component on the CONFIGURE tab to point at. Uncomment its handle in the script, the same way you uncommented the vision handle earlier in this phase:

motion = MotionClient.from_robot(machine, "builtin")

You do not convert the detected pose to the world frame yourself. motion.move takes a PoseInFrame: a Pose paired with the name of the frame it is expressed in. Tag the detected pose with reference_frame="cam-1" and the motion service walks the frame graph for you, the same graph you watched move in the 3D scene tab when the cam-1 frame swung with the arm as you jogged joint 1. It knows the camera’s offset from the wrist, the wrist’s offset from the next joint, and so on down to the arm’s base at the world origin, so it can plan a collision-free path in world from a goal you hand it in cam-1.

Frame tree (rooted at world):

world  (origin at the arm base)
└─ arm-1
   ├─ gripper-1   (z +105 from the arm end — the TCP motion.move drives)
   └─ cam-1       (wrist-mounted — the frame vision-segment reports in)

motion.move plans in world from a goal you give it in cam-1;
the motion service walks this tree for you.

It also matters exactly what motion.move moves. Two motions that sound similar are not the same thing:

• The CONTROL tab’s arm card, and a direct Arm method, move the arm’s own end frame: the flange at the end of the last joint.
• motion.move(component_name="gripper-1", ...) moves the gripper-1 frame instead: the gripper’s tool center point (TCP), which sits further down the kinematic chain because the gripper is bolted on past the arm’s end.

A motion.move call names that component and a goal pose tagged with its reference frame:

await motion.move(
    component_name="gripper-1",
    destination=PoseInFrame(reference_frame="cam-1", pose=target_pose),
)

Because you move gripper-1, every offset you compute later is measured to where you want the gripper’s TCP to end up, not the arm’s end. Keep that distinction in mind or the offset math will not make sense.

Detect from home (the wrist-camera rule)

One block, fixed on the table
        │
        ├─ read from an unfixed / unknown arm pose
        │     cam-1 frame depends on the arm pose
        │     → motion.move resolves cam-1 to a different spot each time  (unreliable)
        │
        └─ read from home-pose (a known position)
              cam-1 frame is in a known, repeatable place
              → motion.move resolves cam-1 the same way every time        (reliable)

The home-pose provides a good view of the workspace for the camera to detect objects to be picked up by the arm. Each pick-and-place cycle, the arm moves to the home pose and the shape-detector looks for known shapes. If it has detections, it provides them to the vision-segment service, which you query with vision.get_object_point_clouds. You replace the static approach and grasp poses with poses derived from the point cloud segments:

# Observe from home so the wrist-mounted camera frame is in a known position.
await home.set_position(2)

objects = await vision.get_object_point_clouds("cam-1")
if not objects:
    print("No objects detected")
    return False

# Largest object by point count. Use len(point_cloud).
obj = max(objects, key=lambda o: len(o.point_cloud))
geometry = obj.geometries.geometries[0]
label = geometry.label
print(f"Detected: {label}")

# The detected pose is already in the cam-1 frame; hand it to motion.move as-is.
obj_in_cam = PoseInFrame(reference_frame="cam-1", pose=geometry.center)

get_object_point_clouds returns one entry per object vision-segment fused together, each carrying its own point cloud and geometry. A workspace with several blocks in view returns several entries, so you need a rule for which one to pick this cycle. max(objects, key=lambda o: len(o.point_cloud)) picks the object with the largest point cloud, ordinarily the block closest to the camera or most fully in view. Each point_cloud is the object’s pointcloud data (PCD) stored as raw bytes, so len(o.point_cloud) measures its encoded size in bytes; that grows with the number of points, which makes it a reliable proxy for object size.

Add a print(obj_in_cam.pose) and run the script. Watch the x, y, and z values it prints as you move a block around the table.

Compute the approach and grasp poses

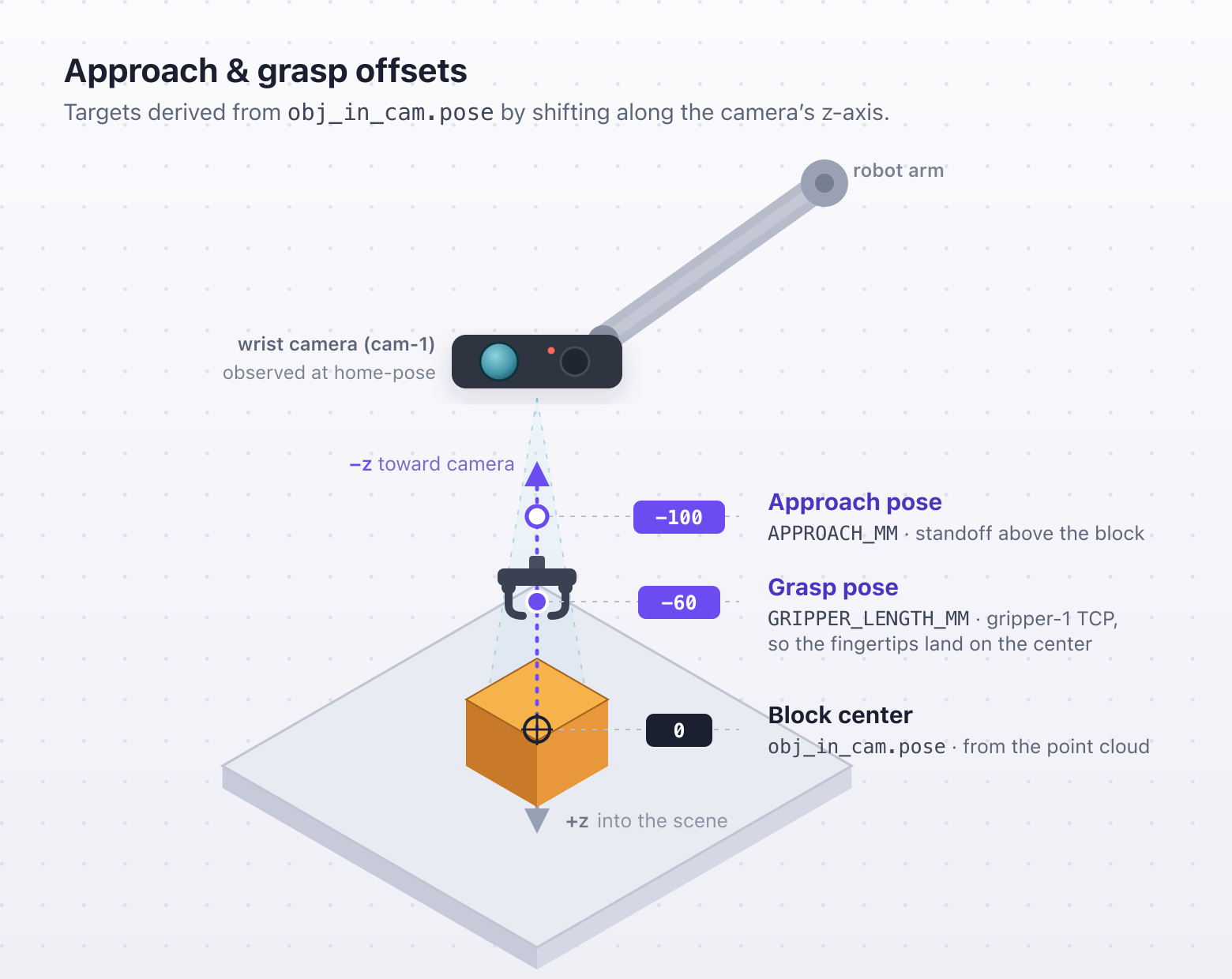

Both offsets are applied to obj_in_cam.pose, the block center in the cam-1 frame. In the camera frame, +z points out of the lens into the scene, so moving toward the camera, up and away from the block, is a negative z offset.

Because you observe from home-pose every cycle, the wrist camera looks down at the workspace from the same angle each time, so its depth axis stays roughly vertical and a z offset moves the target up and down as you would expect. This is one more reason the detect-from-home rule matters: it keeps the frame you are offsetting in a known orientation.

The vision service hands you the block’s center, obj_in_cam.pose, but that is not where you send the gripper: driving its TCP to the center would sink the fingers straight through the block. Instead you derive two targets from that center, a standoff to approach from and a grasp point where the fingers close, by shifting it along z. The workshop’s offset_pose helper does exactly that, moving a pose in z while leaving x, y, and orientation untouched:

def offset_pose(pose: Pose, z_offset_mm: float) -> Pose:
    """Raise or lower a pose in z while keeping x/y/orientation fixed."""
    return Pose(
        x=pose.x,
        y=pose.y,
        z=pose.z + z_offset_mm,
        o_x=pose.o_x,
        o_y=pose.o_y,
        o_z=pose.o_z,
        theta=pose.theta,
    )

Shifting a detected center toward the camera looks like this:

# obj_in_cam.pose.z is the block center, say 387 mm from the camera
standoff = offset_pose(obj_in_cam.pose, -50)
# standoff.z is now 337 mm: same x and y, 50 mm nearer the camera

The approach and grasp poses below apply this same shift with the offsets tuned for this gripper.

The approach pose is a standoff directly above the block, high enough that the gripper can descend onto it without first colliding with it sideways. That offset is worked for you:

approach_pose = offset_pose(obj_in_cam.pose, APPROACH_MM)

APPROACH_MM is -100. Applied to obj_in_cam.pose, the block’s bounding-box center, this places the standoff 100 mm toward the camera from the block: enough clearance for the gripper to descend cleanly, with room to spare for a small pose error.

Now compute the grasp pose yourself. At the block you want the gripper’s fingertips, not its TCP: the fingers have to close around the block. motion.move drives the gripper-1 TCP, which sits one gripper-length back from the fingertip contact point, so to land the fingertips on the block center you stop the TCP one gripper-length short of it, toward the camera. That single offset is all you add, because motion.move is already driving the gripper’s TCP rather than the arm’s end. Work out the offset before reading on.

The offset is GRIPPER_LENGTH_MM, the depth from the gripper’s TCP out to its fingertip contact point:

grasp_pose = offset_pose(obj_in_cam.pose, GRIPPER_LENGTH_MM)

GRIPPER_LENGTH_MM is -60. If you used APPROACH_MM here by mistake, the gripper stops well short of the block instead of at it; if you used zero, you would drive the TCP itself to the block center, sinking the fingers a full gripper-length past the block instead of closing them around it.

Run the full pick loop

With approach_pose and grasp_pose computed, assemble the full cycle:

await motion.move(
    component_name="gripper-1",
    destination=PoseInFrame(reference_frame="cam-1", pose=approach_pose),
)
await gripper.open()
await motion.move(
    component_name="gripper-1",
    destination=PoseInFrame(reference_frame="cam-1", pose=grasp_pose),
)
await gripper.grab()
await asyncio.sleep(0.3)  # finger gripper settle
await travel.set_position(2)
await place_pose.set_position(2)
await gripper.open()
await home.set_position(2)

This cycle picks with motion.move and places with the saved-pose switches from Phase 3. The pick target moves every cycle, so it needs the Cartesian precision and obstacle-aware planning that motion.move provides against a freshly computed grasp pose. The place target never moves: it is the same bin in the same spot every time. The saved-pose switch replays fixed joint positions directly, without invoking the motion planner, so for a target that never changes it is simpler and just as reliable as planning a fresh path each cycle.

Run the script and watch the sequence come together in three stages.

First, the approach move lifts the gripper to the standoff above the detected block:

Next, the grasp move descends onto the block and the gripper closes:

Finally, the place and return steps carry the block to the bin and send the arm home:

Debugging guide

Work through these in order. The first one causes most of the rest. If you get stuck, compare your loop against the complete reference-solution.py in the companion repo.

• Did you detect from home-pose? This is the first thing to check for nearly every perception symptom below. If the await home.set_position(2) guard is missing before a get_object_point_clouds call, or if you added a second detection somewhere that skips it, every downstream pose is computed against the wrong camera position.
• No objects detected. Open the CONTROL tab and run the vision-segment card by hand while a block sits in view. If that also returns nothing, check the shape-detector card on its own: a detector that finds nothing means the block is out of frame, or lighting has changed enough to affect the shape detection. If shape-detector finds the block but vision-segment does not, check that a block is close enough and clearly separated from the table surface for the depth fusion step to segment it.
• The pick point drifts from cycle to cycle, even for a block that has not moved. This is almost always the wrist-camera rule again: some code path is detecting from a pose other than home-pose. Print obj_in_cam.pose on every cycle and confirm the arm is fully settled at home-pose before each detection call.
• Motion planning fails, or the target looks unreachable. Open the 3D scene tab during the failing move and look at where approach_pose or grasp_pose lands relative to the table and safety-wall geometry from Phase 3. A detected pose near a workspace boundary can place the standoff or the grasp point outside the region the planner is allowed to move through. If you skipped or under-measured the obstacle configuration in Phase 3, this is where it bites: geometry that does not match your physical setup makes the planner reject moves that are perfectly safe, or, worse, accept ones that are not. Revisit Teach the planner about obstacles and recheck your measurements before assuming the pose math is wrong.

With a full perception-guided pick loop running end to end, you have every piece of the workshop’s core loop working from your own computer: detection, planned motion, and a reliable place. The next phase picks up from here to package this same script as a module that runs on the robot directly, with no laptop connection required once it is deployed. If you are stopping here, the wrap-up reviews what you built and where to go next.
