Phase 2: Configure resources

You configured the arm in Phase 1. In this phase you add the two resources that work alongside it, a gripper and a camera, connect all three with frames, and confirm each one works from the CONTROL tab before moving on.

The target state

By the end of this phase your CONFIGURE tab holds all three components: arm-1 from Phase 1, plus the gripper and camera you add here.

Configure the gripper

Start with the gripper. On the CONFIGURE tab, click the + icon and select Blocks. Search for gripper and select the ufactory/gripper result. Name it gripper-1.

Set one attribute:

{

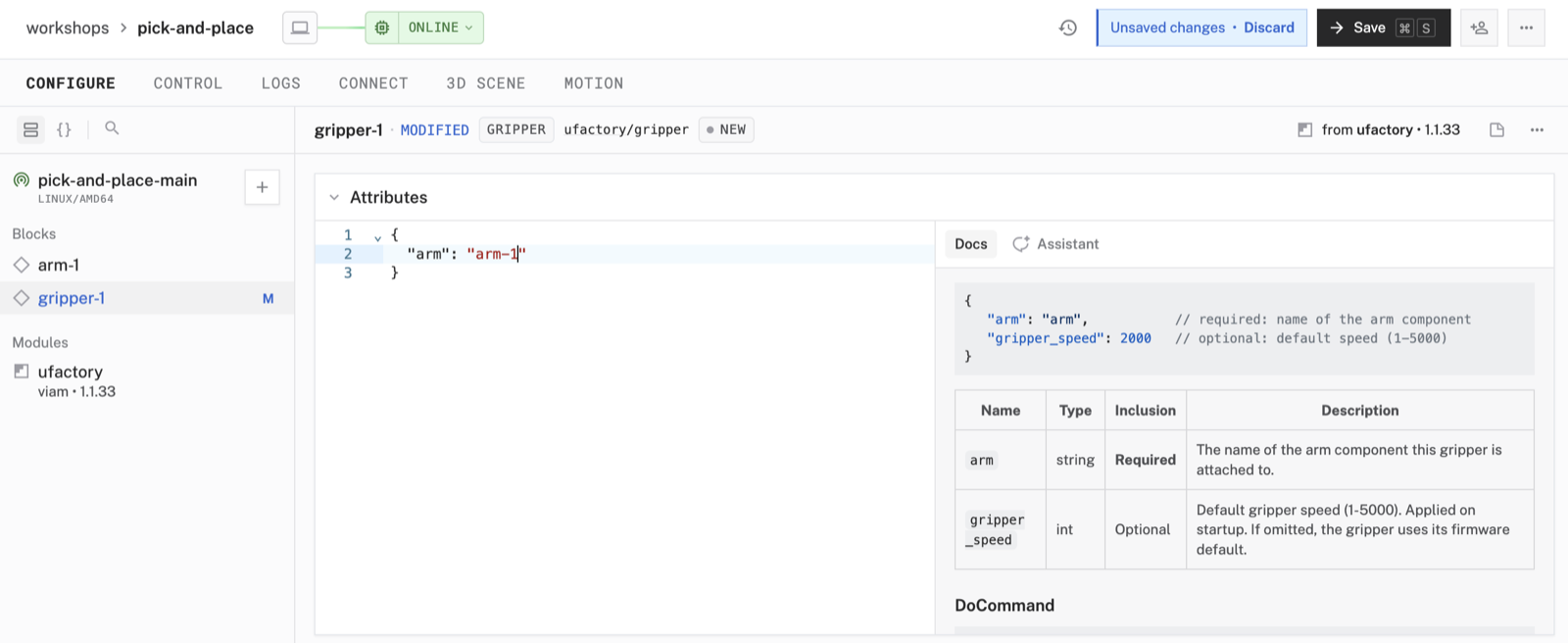

  "arm": "arm-1"
}

This attribute is also a dependency: gripper-1 cannot start until arm-1 is running, because the gripper is physically mounted on the arm and controlled through the same connection. Save the config and check the LOGS tab: gripper-1 comes online immediately, because the viam:ufactory module has been running since Phase 1.

Configure the camera with a discovery service

You could add the camera by hand like the arm and gripper, but the RealSense module ships a discovery service that does the tedious part for you: it finds the connected camera and hands you a ready-made config with the correct serial number already filled in. A discovery service reports the hardware attached to a machine and suggests configurations for it, so you configure the right device without hunting for identifiers by hand. See Discovery service for the general pattern.

Add the discovery service

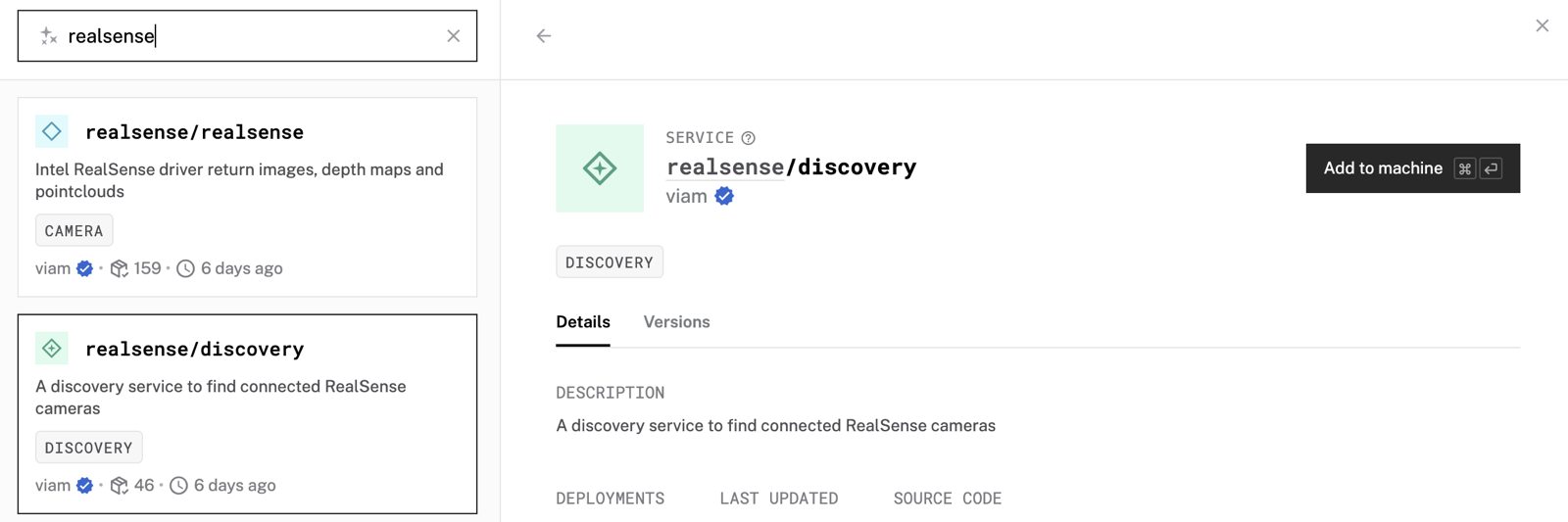

Click the + icon and select Blocks. Search for realsense and select the discovery / realsense:discovery service. Leave its name as the default and save the config.

Saving now is the moment viam-server fetches the viam:realsense module: the discovery service and the camera model both come from it, so the download happens once here, the same way viam:ufactory downloaded once for the arm and gripper. Watch the LOGS tab for the module download and the discovery service starting.

Discover the camera

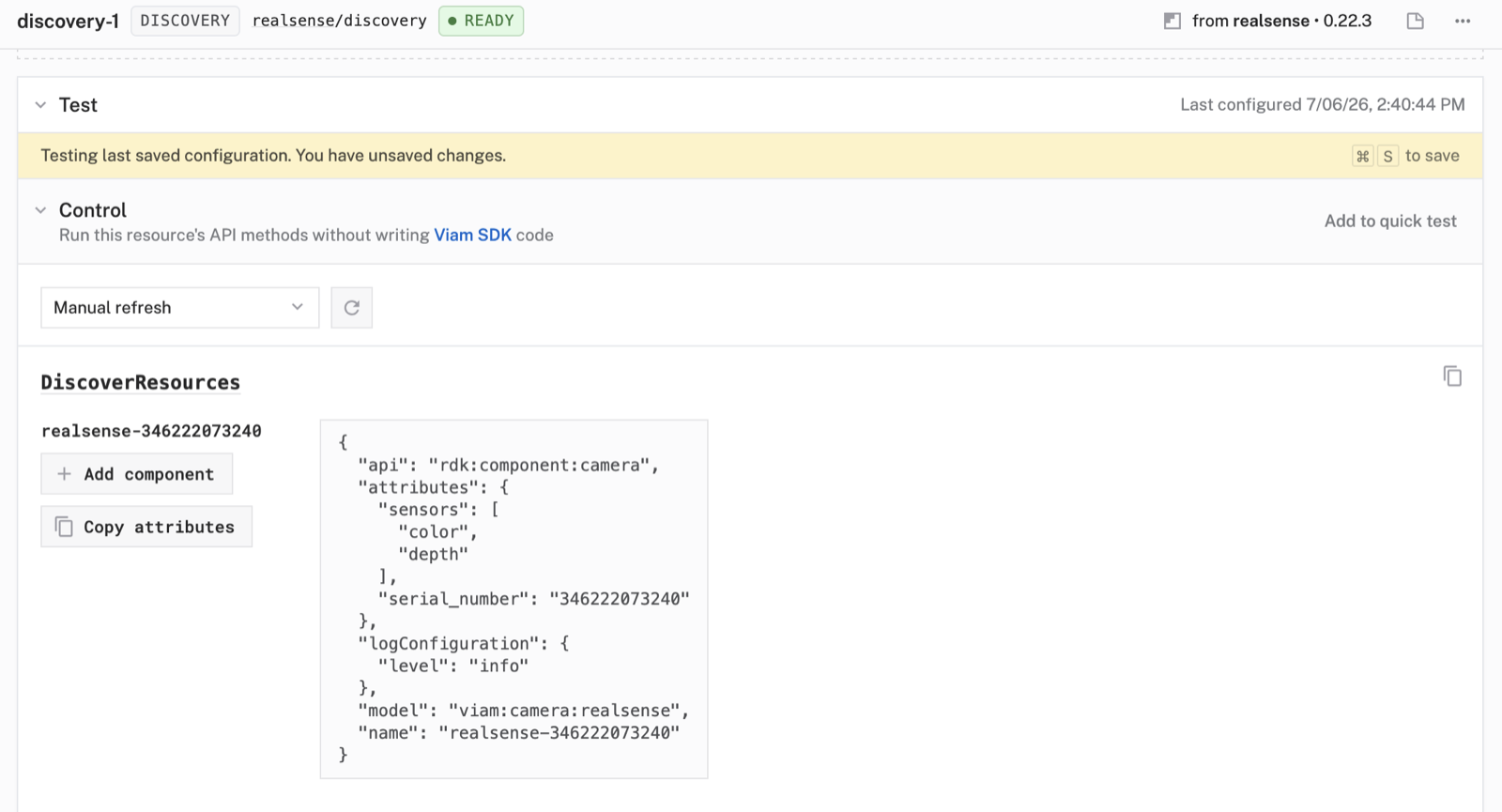

Open the discovery service’s TEST panel. It lists every RealSense it detects on the machine, each as a copy-pasteable configuration snippet with that camera’s serial_number already populated. With one camera connected you see one entry. Select Add component next to it to create a camera component from the snippet.

The discovered component arrives named realsense-<serial_number>, with sensors set to ["color", "depth"] and serial_number already filled in. Rename it to cam-1 so it matches the rest of this workshop, then add the one attribute discovery does not set:

• align_color_depth: true

Leave the discovered sensors and serial_number as they are; letting discovery set the serial number is the whole point of using the service. You do not need to set width_px or height_px; the module uses a supported default resolution, and pinning one that the camera cannot produce would fail the build.

align_color_depth When set to true, the module aligns each depth frame to the color frame, so a given pixel in the color image and the same pixel in the depth image describe the same physical point. The vision-segment service in Phase 5 relies on that alignment to turn a 2D detection into a 3D point cloud segment. Both color and depth must be in the sensors list for it to take effect.

Save the config and confirm in the LOGS tab that cam-1 starts. Because viam-server already downloaded the viam:realsense module when you added the discovery service, the camera comes online with no second download.

Connect the components with frames

Adding the arm, gripper, and camera tells viam-server how to talk to each one, but not where each sits in space. The motion service needs that spatial relationship: it has to know the gripper is mounted on the end of the arm and the camera looks out from the wrist, or it cannot plan a pick. You supply it by adding a frame to each component.

The three frames form a tree rooted at world:

world
└── arm-1
    ├── gripper-1   (rides on the end effector)
    └── cam-1       (mounted on the wrist)

Frame the arm

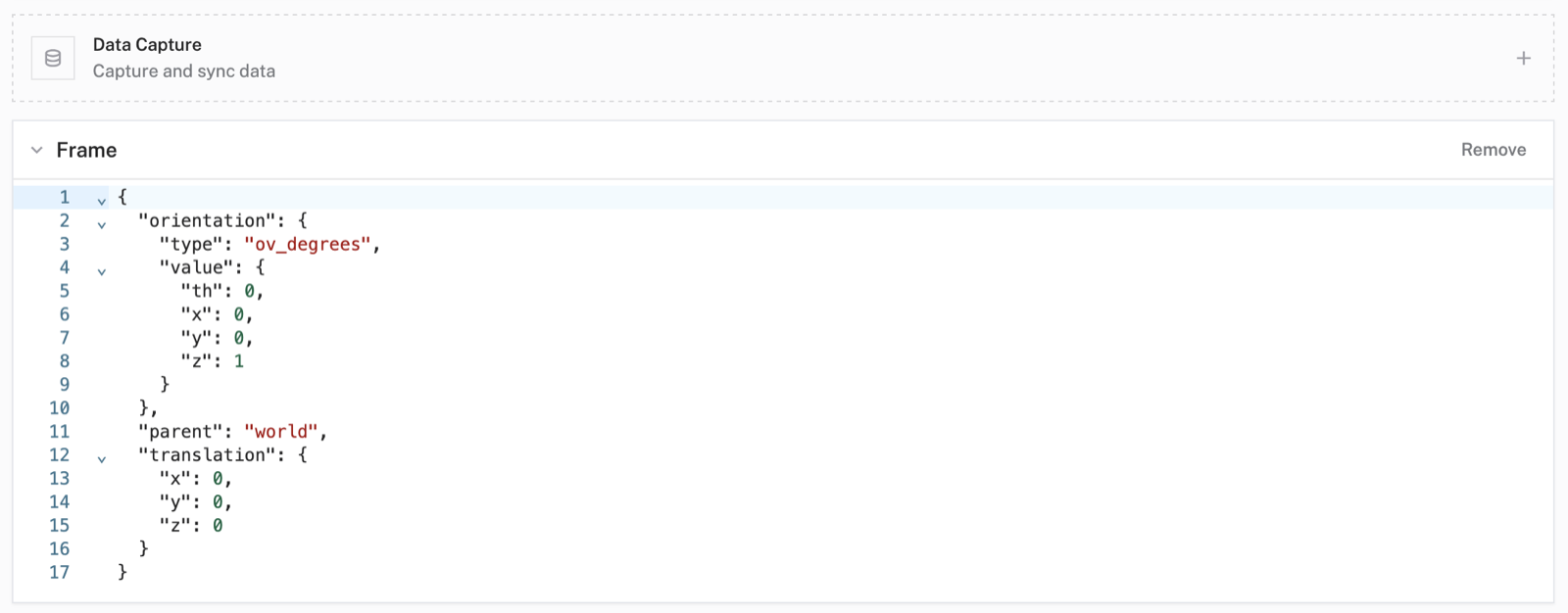

Open the arm-1 card on the CONFIGURE tab and select Frame. The default frame already describes what you want: parent world, translation (0, 0, 0), no rotation. That places the arm’s base at the origin of the world, and every other frame is measured from there. Leave the defaults and save.

Frame the gripper

Open the gripper-1 card and select Frame. Switch the editor to JSON and set:

{
  "parent": "arm-1",
  "translation": { "x": 0, "y": 0, "z": 105 },
  "orientation": {
    "type": "ov_degrees",
    "value": { "x": 0, "y": 0, "z": 1, "th": 0 }
  }
}

Parent arm-1 attaches the gripper to the end of the arm, and z: 105 places the gripper frame 105 mm out from the arm’s end effector, at the gripper’s tool center point. This is the point the motion service drives to a target when you call motion.move later in the workshop, and the reference the grasp math in Phase 5 builds on. This frame is separate from the arm attribute you set earlier: the attribute shares the arm’s connection, while the frame tells the planner where the gripper sits. To go deeper on how parent frames and translations place an end effector like this, see Arm and end effector frames.

Frame the camera

Open the cam-1 card and select Frame. Switch the editor to JSON and set:

{
  "parent": "arm-1",
  "translation": { "x": -73, "y": 40, "z": 18 },
  "orientation": {
    "type": "ov_degrees",
    "value": { "x": 0, "y": 0, "z": 1, "th": 270 }
  }
}

Parent arm-1 mounts the camera on the wrist so it moves with the arm. The translation places the camera’s optical center relative to the end effector, and the 270-degree rotation around z lines the camera’s axes up with the arm’s. Save the config.

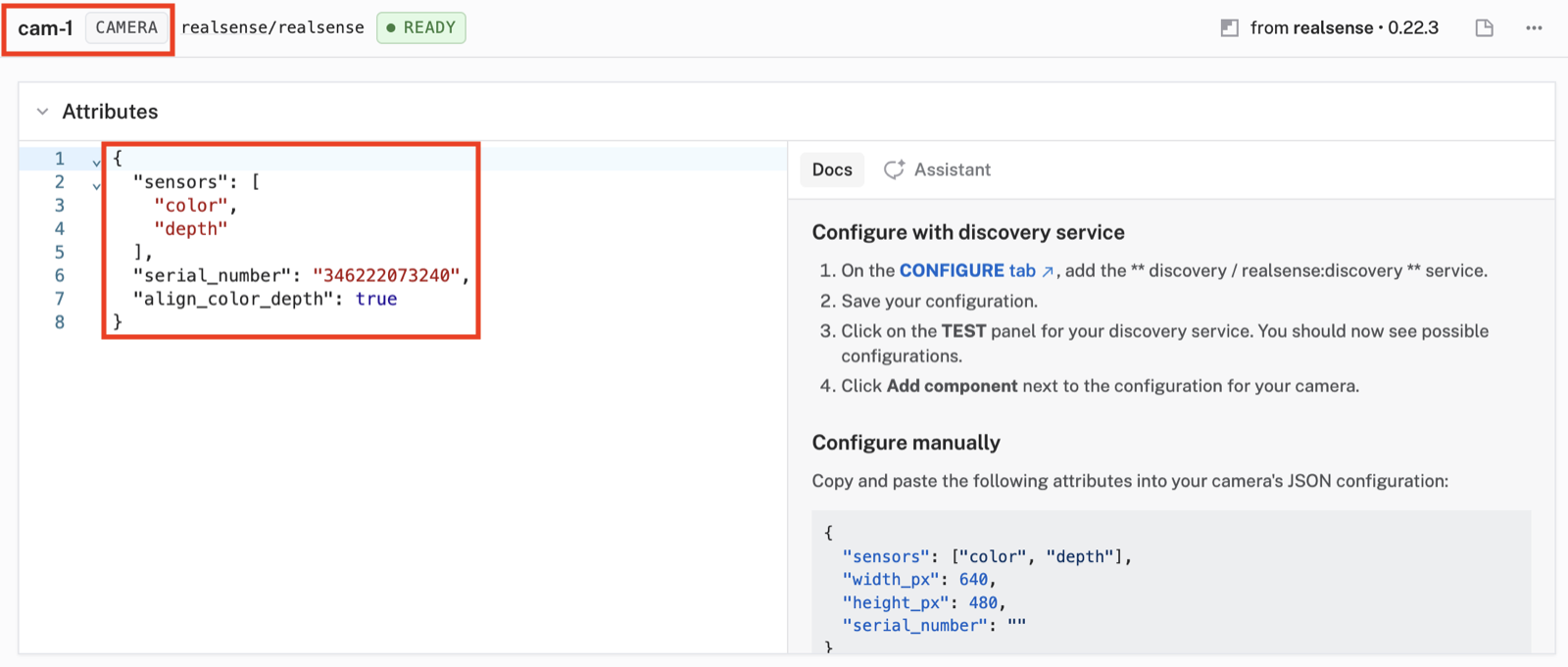

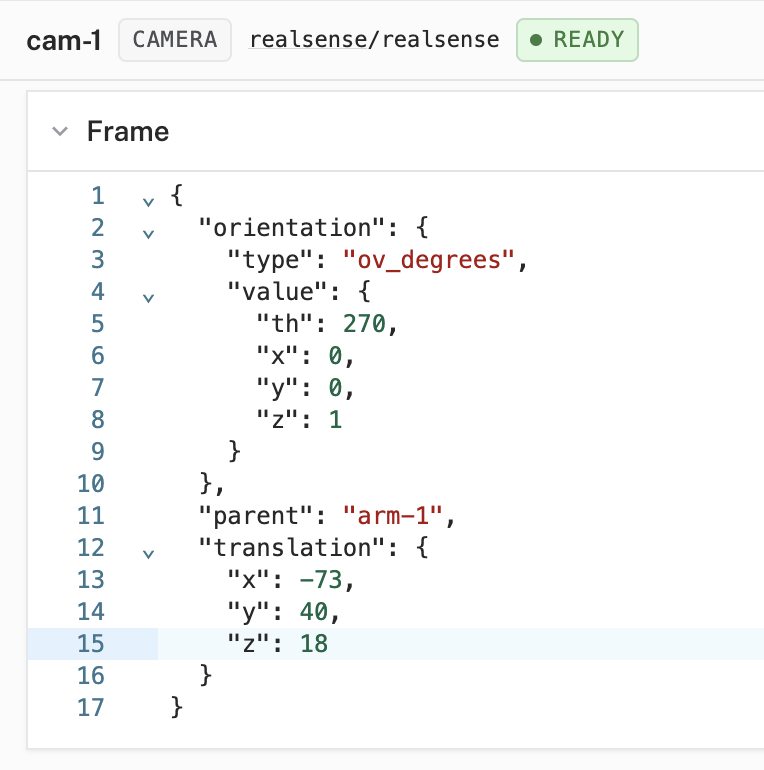

Check that your camera configuration matches the image below: the component name is cam-1, the module / model selected is realsense/realsense, and the frame values match. Note that the attributes may change their order; you only need to verify the values.

Test each resource from the CONTROL tab

Open the CONTROL tab. You should now see a test card for each of the three components you just added.

Test the camera

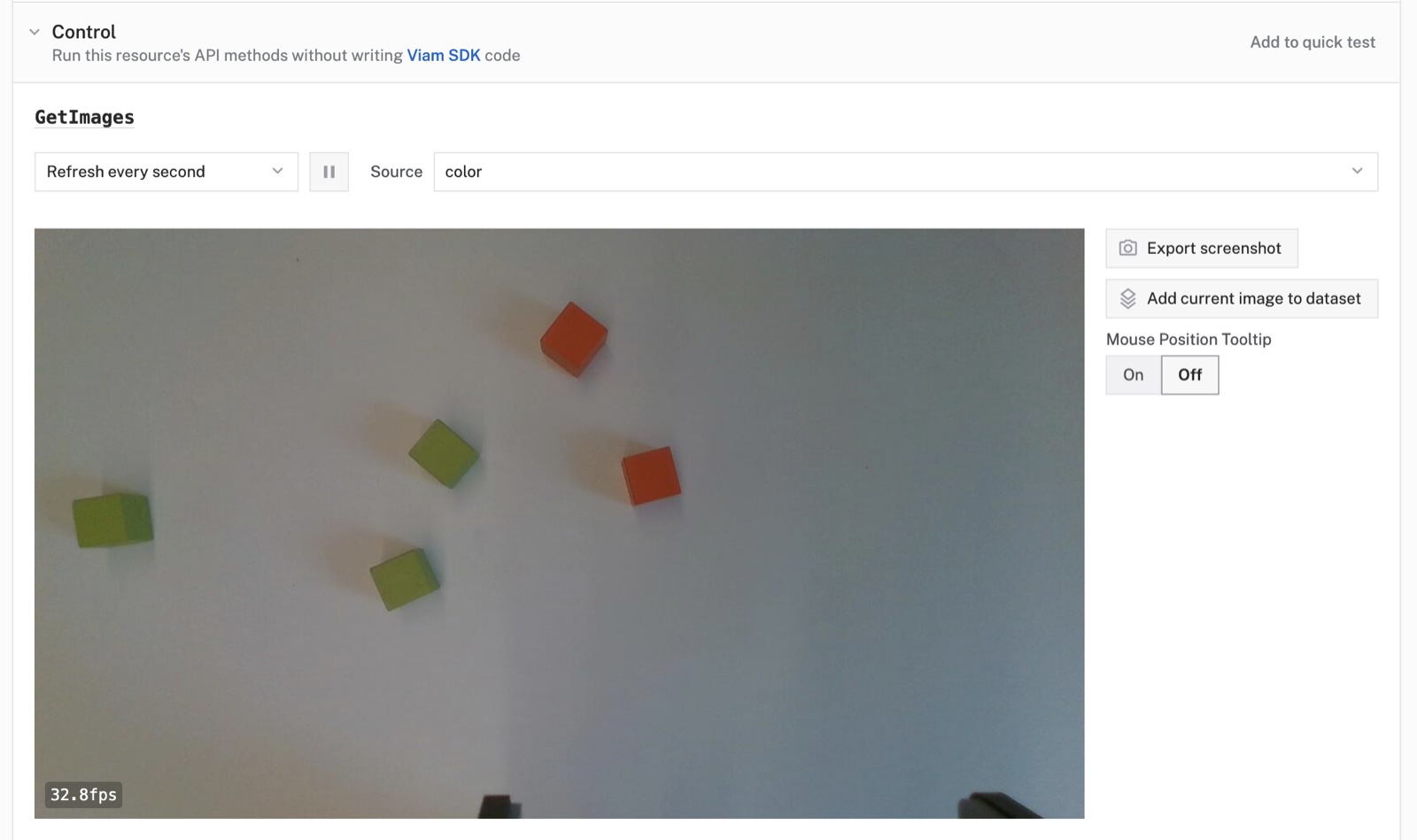

On the camera card, confirm you get a live feed:

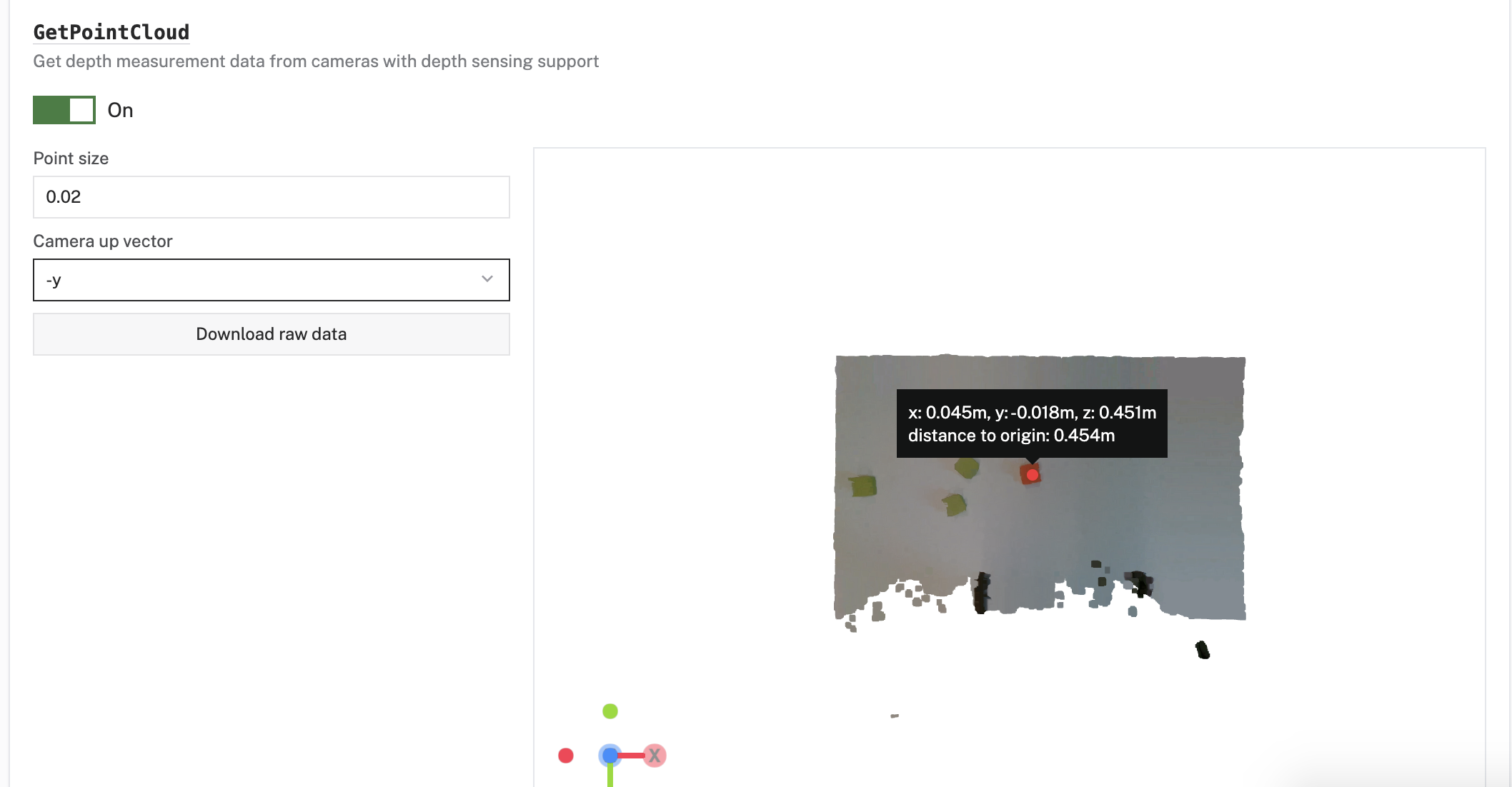

Below the GetImages control, you can toggle GetPointCloud on and set the “Camera up vector” to “-y” to see a live stream of the pointcloud data from the camera as a 3D scene. Hovering over any part of the point cloud with your mouse will display the x, y, z coordinates of that point from the perspective of the camera and distance from the camera sensor.

Move the arm

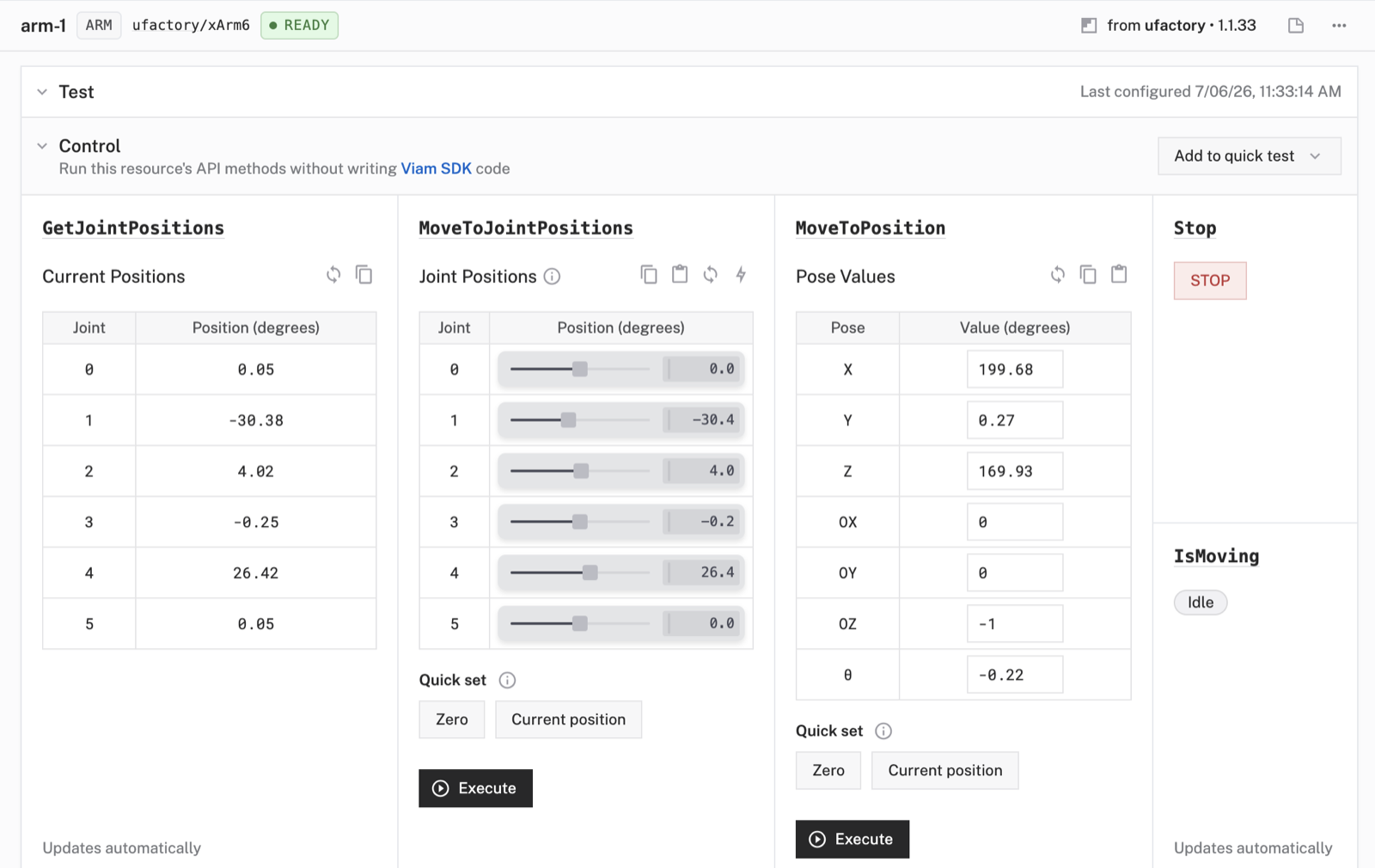

The arm card shows the arm’s current joint positions, and provides two different control methods to test the arm, Joint Control and Cartesian control. Joint Control lets you manually set a joint’s desired position and click execute, while the cartesian control lets you move the arm to a specific pose in space. Before using either, it is always a good idea to press Current Position to set the desired values to match the robot’s current state. Try moving joint 5 and 6 with the MoveToJointPositions sliders and press Execute and watch the end of the arm move. Then, under MoveToPosition, press Current position and confirm the Pose Values populate with the arm’s current x, y, and z.

Control the gripper

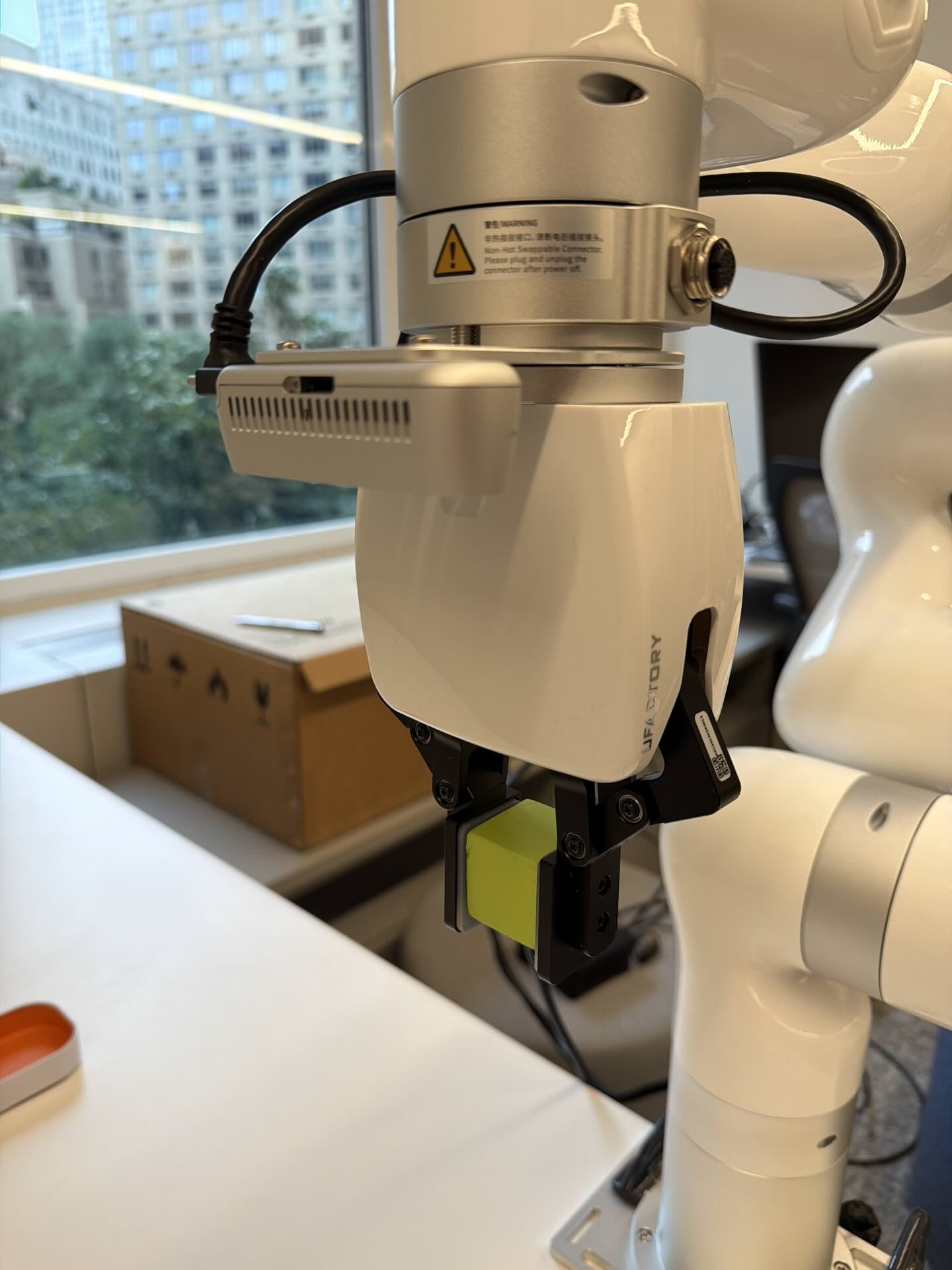

The gripper test card lets you open and close a gripper, check whether the gripper is moving and whether it believes it’s holding an object. Place a block between the fingers, and press Grab to close the fingers and hold the block. Open releases the block. This grab-and-release is the same action your Python code performs later in the workshop when it picks a block and drops it in a bin. If your gripper card also shows a holding status indicator, it now reads true while the block is held and false once the gripper is open and empty.

The 3D scene tab

Open the 3D scene tab. It uses the resources and frames you configured to build a 3D model of your hardware: you should see the arm with its base at the world origin, plus a coordinate frame for cam-1 and one for gripper-1 near the end of the wrist.

Jog joint 1 with the arm card’s sliders and watch the 3D scene as the arm turns. The cam-1 frame moves with the arm, because the camera is mounted on the wrist rather than fixed in the workspace.

Check your work

If you want to compare your configuration against a known-good version, the companion repo has a reference copy at machine-fragment.json. Use it to check your work.

With arm-1, gripper-1, and cam-1 all live and verified, you are ready for Phase 3, where you save a set of fixed arm poses and prove the full hardware sequence works before perception enters the picture.
